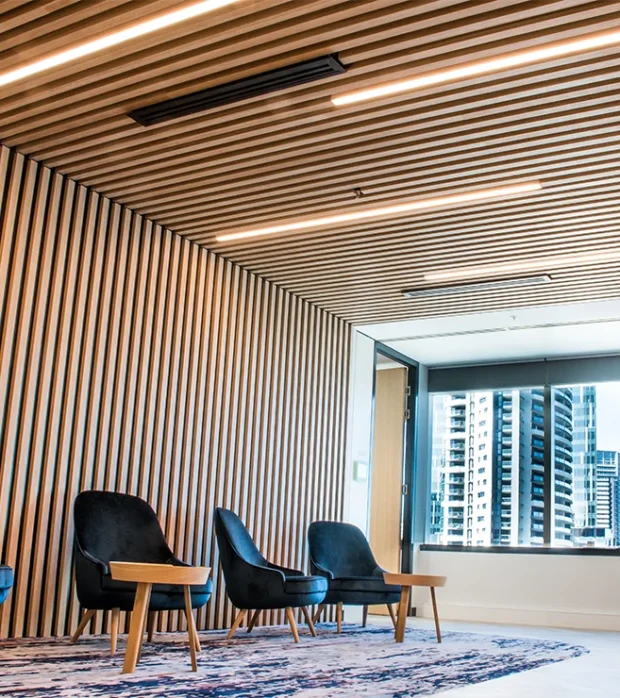

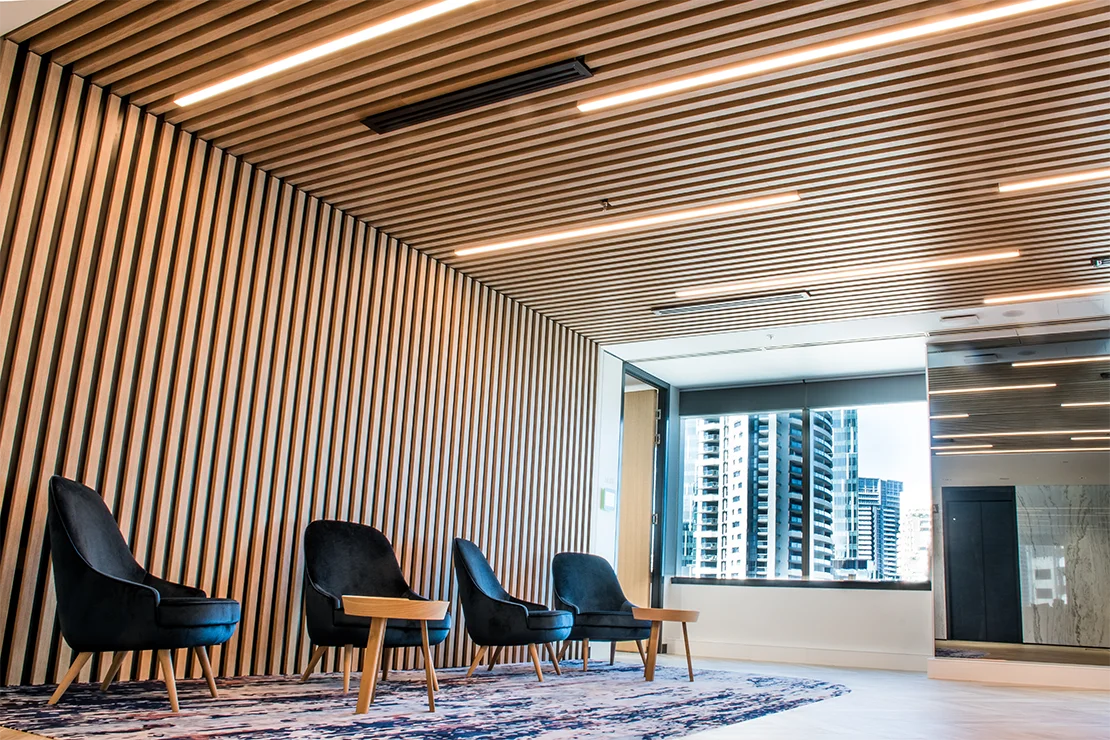

The Razor Max series is a collection of versatile solution based linear LED profiles custom fabricated to meet specific project requirements. Razor Max 4 SM is a surface profile perfect for retail displays and workspaces, it can also be mounted between timber battens.
General
Scope : Interior
Mounting : Ceiling
Fixation : Surface Mounted
Type : LED
IP Rating : IP20 // IP54 // IP66
Technical Details
Wattage : 4.8W // 9.6W // 14.4W // 16W // 19.2W // 29W
Lumens : 384lm // 768lm // 1152lm // 1280lm // 1536lm // 2320lm
Colour Temperature : 3000K // 4000K // 2700K-6000K Tunable White
Dimmable : Phase Dimmable // DALI Dimmable // Bluetooth
Beam Angle : Direct
Finishes : Anodised Silver // Flat White // Ace Black // Custom
Physical
Height : 37.4mm
Width : 34.8mm
Length : Custom
